Apache Shiro Architecture
Apache Shiro’s design goals are to simplify application security by being intuitive and easy to use. Shiro’s core design models how most people think about application security - in the context of someone (or something) interacting with an application.
Software applications are usually designed based on user stories. That is, you’ll often design user interfaces or service APIs based on how a user would (or should) interact with the software. For example, you might say, “If the user interacting with my application is logged in, I will show them a button they can click to view their account information. If they are not logged in, I will show a sign-up button.”
This example statement indicates that applications are largely written to satisfy user requirements and needs. Even if the ‘user’ is another software system and not a human being, you still write code to reflect behavior based on who (or what) is currently interacting with your software.
Shiro reflects these concepts in its own design. By matching what is already intuitive for software developers, Apache Shiro remains intuitive and easy to use in practically any application.
At the highest conceptual level, Shiro’s architecture has 3 primary concepts: the

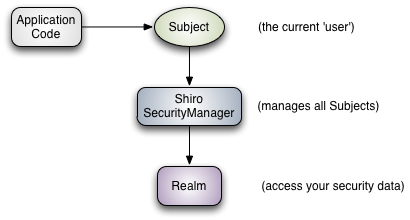

Realms. The following diagram is a high-level overview of how these components interact, and we’ll cover each concept below:
Subject: As we’ve mentioned in our Tutorial, the
Subjectis essentially a security specific ‘view’ of the the currently executing user. Whereas the word ‘User’ often implies a human being, a
Subjectcan be a person, but it could also represent a 3rd-party service, daemon account, cron job, or anything similar - basically anything that is currently interacting with the software.
Subjectinstances are all bound to (and require) a
SecurityManager. When you interact with a
Subject, those interactions translate to subject-specific interactions with the
SecurityManageris the heart of Shiro’s architecture and acts as a sort of ’umbrella’ object that coordinates its internal security components that together form an object graph. However, once the SecurityManager and its internal object graph is configured for an application, it is usually left alone and application developers spend almost all of their time with the
We will talk about the
SecurityManagerin detail later on, but it is important to realize that when you interact with a
Subject, it is really the
SecurityManagerbehind the scenes that does all the heavy lifting for any
Subjectsecurity operation. This is reflected in the basic flow diagram above.
Realms: Realms act as the ‘bridge’ or ‘connector’ between Shiro and your application’s security data. When it comes time to actually interact with security-related data like user accounts to perform authentication (login) and authorization (access control), Shiro looks up many of these things from one or more Realms configured for an application.
In this sense a Realm is essentially a security-specific DAO : it encapsulates connection details for data sources and makes the associated data available to Shiro as needed. When configuring Shiro, you must specify at least one Realm to use for authentication and/or authorization. The
SecurityManagermay be configured with multiple Realms, but at least one is required.
Shiro provides out-of-the-box Realms to connect to a number of security data sources (aka directories) such as LDAP, relational databases (JDBC), text configuration sources like INI and properties files, and more. You can plug-in your own Realm implementations to represent custom data sources if the default Realms do not meet your needs.
Like other internal components, the Shiro
SecurityManagermanages how Realms are used to acquire security and identity data to be represented as

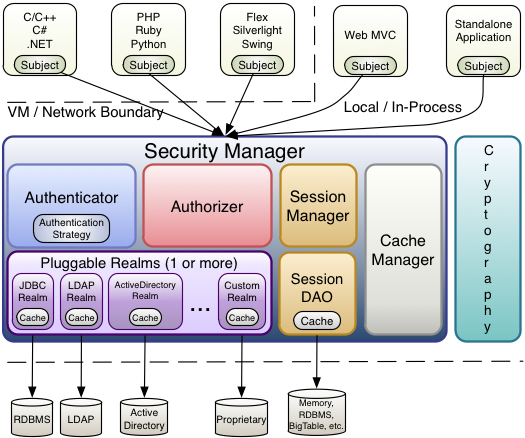

The following diagram shows Shiro’s core architectural concepts followed by short summaries of each:
A security-specific ‘view’ of the entity (user, 3rd-party service, cron job, etc) currently interacting with the software.
SecurityManager (org.apache.shiro.mgt.SecurityManager )
As mentioned above, the
SecurityManageris the heart of Shiro’s architecture. It is mostly an ‘umbrella’ object that coordinates its managed components to ensure they work smoothly together. It also manages Shiro’s view of every application user, so it knows how to perform security operations per user.
Authenticator (org.apache.shiro.authc.Authenticator )
Authenticatoris the component that is responsible for executing and reacting to authentication (log-in) attempts by users. When a user tries to log-in, that logic is executed by the
Authenticatorknows how to coordinate with one or more
Realmsthat store relevant user/account information. The data obtained from these
Realmsis used to verify the user’s identity to guarantee the user really is who they say they are.
Authentication Strategy (org.apache.shiro.authc.pam.AuthenticationStrategy )
If more than one
Realmis configured, the
AuthenticationStrategywill coordinate the Realms to determine the conditions under which an authentication attempt succeeds or fails (for example, if one realm succeeds but others fail, is the attempt successful? Must all realms succeed? Only the first?).
Authorizer (org.apache.shiro.authz.Authorizer )
Authorizeris the component responsible determining users’ access control in the application. It is the mechanism that ultimately says if a user is allowed to do something or not. Like the
Authorizeralso knows how to coordinate with multiple back-end data sources to access role and permission information. The
Authorizeruses this information to determine exactly if a user is allowed to perform a given action.
SessionManager (org.apache.shiro.session.mgt.SessionManager )
SessionManagerknows how to create and manage user
Sessionlifecycles to provide a robust Session experience for users in all environments. This is a unique feature in the world of security frameworks - Shiro has the ability to natively manage user Sessions in any environment, even if there is no Web/Servlet or EJB container available. By default, Shiro will use an existing session mechanism if available, (e.g. Servlet Container), but if there isn’t one, such as in a standalone application or non-web environment, it will use its built-in enterprise session management to offer the same programming experience. The
SessionDAOexists to allow any datasource to be used to persist sessions.
SessionDAO (org.apache.shiro.session.mgt.eis.SessionDAO )
Sessionpersistence (CRUD) operations on behalf of the
SessionManager. This allows any data store to be plugged in to the Session Management infrastructure.
CacheManager (org.apache.shiro.cache.CacheManager )
CacheManagercreates and manages
Cacheinstance lifecycles used by other Shiro components. Because Shiro can access many back-end data sources for authentication, authorization and session management, caching has always been a first-class architectural feature in the framework to improve performance while using these data sources. Any of the modern open-source and/or enterprise caching products can be plugged in to Shiro to provide a fast and efficient user-experience.
Cryptography (org.apache.shiro.crypto.* )
Cryptography is a natural addition to an enterprise security framework. Shiro’s
cryptopackage contains easy-to-use and understand representations of crytographic Ciphers, Hashes (aka digests) and different codec implementations. All of the classes in this package are carefully designed to be very easy to use and easy to understand. Anyone who has used Java’s native cryptography support knows it can be a challenging animal to tame. Shiro’s crypto APIs simplify the complicated Java mechanisms and make cryptography easy to use for normal mortal human beings.
Realms (org.apache.shiro.realm.Realm )
As mentioned above, Realms act as the ‘bridge’ or ‘connector’ between Shiro and your application’s security data. When it comes time to actually interact with security-related data like user accounts to perform authentication (login) and authorization (access control), Shiro looks up many of these things from one or more Realms configured for an application. You can configure as many
Realmsas you need (usually one per data source) and Shiro will coordinate with them as necessary for both authentication and authorization.
Because Shiro’s API encourages a
Subject-centric programming approach, most application developers will rarely, if ever, interact with the
SecurityManager directly (framework developers however might sometimes find it useful). Even so, it is still important to know how the
SecurityManager functions, especially when configuring one for an application.
As stated previously, the application’s
SecurityManager performs security operations and manages state for all application users. In Shiro’s default
SecurityManager implementations, this includes:
- Session Management
- Cache Management
- Realm coordination
- Event propagation
- “Remember Me” Services
- Subject creation
- Logout and more.
But this is a lot of functionality to try to manage in a single component. And, making these things flexible and customizable would be very difficult if everything were lumped into a single implementation class.
To simplify configuration and enable flexible configuration/pluggability, Shiro’s implementations are all highly modular in design - so modular in fact, that the SecurityManager implementation (and its class-hierarchy) does not do much at all. Instead, the
SecurityManager implementations mostly act as a lightweight ‘container’ component, delegating almost all behavior to nested/wrapped components. This ‘wrapper’ design is reflected in the detailed architecture diagram above.
While the components actually execute the logic, the
SecurityManager implementation knows how and when to coordinate the components for the correct behavior.
SecurityManager implementations and the components are also JavaBeans compatible, which allows you (or a configuration mechanism) to easily customize the pluggable components via standard JavaBeans accessor/mutator methods (get*/set*). This means the Shiro’s architectural modularity can translate into very easy configuration for custom behavior.
Because of JavaBeans compatibility, it is very easy to configure the `SecurityManager` with custom components via any mechanism that supports JavaBeans-style configuration, such as Spring, Guice, JBoss, etc.
We will cover Configuration next.
