Font Concepts

This section introduces you to the Font class, which supports the specification of detailed font information and the use of sophisticated typographic features.

A Font object represents an instance of a font face from the collection of font faces available on the system. Examples of common font faces include Helvetica Bold and Courier Bold Italic. Three names are associated with a Font object: its logical name, family name, and font face name:

  • A Font object's logical name is a name mapped onto a physical font, which is one of the specific fonts available on the system. When specifying a Font in Java, use the font face name instead of the logical name. You can get the logical name from the Font by calling the getName method. To get a list of the logical names that are mapped onto the specific fonts available on a system, call the java.awt.GraphicsEnvironment.getAvailableFontFamilyNames method.

    See Physical and Logical Fonts for more information.

  • A Font object's family name is the name of the font family that determines the typographic design across several faces, such as Helvetica. Retrieve the family name through the getFamily method.

  • A Font object's font face name refers to an actual font installed on a system. This is the name you should use when specifying a font. It's often referred to as just the font name. Retrieve the font name by calling getFontName . To determine which font faces are available on the system, call the java.awt.GraphicsEnvironment.getAllFonts method.

You can access information about a Font through the getAttributes method. A Font objects's attributes include its name, size, transform, and font features such as weight and posture.

A LineMetrics object encapsulates the measurement information associated with a Font , such as its ascent, descent, and leading:

  • Ascent is the distance from the baseline to the ascender line. This distance represents the typical height of capital letters, but some characters might extend above the ascender line.
  • Descent is the distance from the baseline to the descender line. The lowest point of most characters will fall within the descent, but some characters might extend below the descender line.
  • Leading is the recommended distance from the bottom of the descender line to the top of the next line.

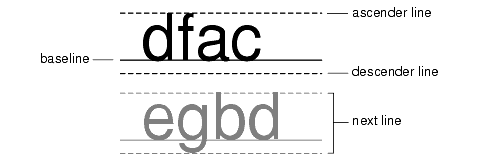

The following figure shows the position of the ascender line, baseline, and descender line:

Position of the ascender line, baseline, and descender line

This information is used to properly position characters along a line, and to position lines relative to one another. You can access these line metrics through the getAscent getDescent , and getLeading methods. You can also access information about a Font objects's height, baseline, and underline and strikethrough characteristics through the LineMetrics class.
