Running the Example Programs

A Note About Security

The server and client programs run with a security manager installed. When you run either program, you need to specify a security policy file so that the code is granted the security permissions it needs to run. Here is an example policy file to use with the server program:

grant codeBase "file:/home/ann/src/" {

Here is an example policy file to use with the client program:

grant codeBase "file:/home/jones/src/" {

For both example policy files, all permissions are granted to the classes in the program's local class path, because the local application code is trusted, but no permissions are granted to code downloaded from other locations. Therefore, the compute engine server restricts the tasks that it executes (whose code is not known to be trusted and might be hostile) from performing any operations that require security permissions. The example client's Pi task does not require any permissions to execute.

In this example, the policy file for the server program is named server.policy , and the policy file for the client program is named client.policy .

Starting the Server

Before starting the compute engine, you need to start the RMI registry. The RMI registry is a simple server-side bootstrap naming facility that enables remote clients to obtain a reference to an initial remote object. It can be started with the rmiregistry command. Before you execute rmiregistry , you must make sure that the shell or window in which you will run rmiregistry either has no CLASSPATH environment variable set or has a CLASSPATH environment variable that does not include the path to any classes that you want downloaded to clients of your remote objects.

To start the registry on the server, execute the rmiregistry command. This command produces no output and is typically run in the background. For this example, the registry is started on the host mycomputer .

Microsoft Windows (use javaw if start is not available):

start rmiregistry

Solaris OS or Linux :

rmiregistry &

By default, the registry runs on port 1099. To start the registry on a different port, specify the port number on the command line. Do not forget to unset your CLASSPATH environment variable.

Microsoft Windows :

start rmiregistry 2001

Solaris OS or Linux :

rmiregistry 2001 &

Once the registry is started, you can start the server. You need to make sure that both the compute.jar file and the remote object implementation class are in your class path. When you start the compute engine, you need to specify, using the java.rmi.server.codebase property, where the server's classes are network accessible. In this example, the server-side classes to be made available for downloading are the Compute and Task interfaces, which are available in the compute.jar file in the public_html\classes directory of user ann . The compute engine server is started on the host mycomputer , the same host on which the registry was started.

Microsoft Windows :

java -cp c:\home\ann\src;c:\home\ann\public_html\classes\compute.jar

Solaris OS or Linux :

java -cp /home/ann/src:/home/ann/public_html/classes/compute.jar

The above java command defines the following system properties:

  • The java.rmi.server.codebase property specifies the location, a codebase URL, from which the definitions for classes originating from this server can be downloaded. If the codebase specifies a directory hierarchy (as opposed to a JAR file), you must include a trailing slash at the end of the codebase URL.

  • The java.rmi.server.hostname property specifies the host name or address to put in the stubs for remote objects exported in this Java virtual machine. This value is the host name or address used by clients when they attempt to communicate remote method invocations. By default, the RMI implementation uses the server's IP address as indicated by the API. However, sometimes, this address is not appropriate for all clients and a fully qualified host name would be more effective. To ensure that RMI uses a host name (or IP address) for the server that is routable from all potential clients, set the java.rmi.server.hostname property.

  • The property is used to specify the policy file that contains the permissions you intend to grant.

Starting the Client

Once the registry and the compute engine are running, you can start the client, specifying the following:

  • The location where the client serves its classes (the Pi class) by using the java.rmi.server.codebase property

  • The property, which is used to specify the security policy file that contains the permissions you intend to grant to various pieces of code

  • As command-line arguments, the host name of the server (so that the client knows where to locate the Compute remote object) and the number of decimal places to use in the

the pi symbol


Start the client on another host (a host named mysecondcomputer , for example) as follows:

Microsoft Windows :

java -cp c:\home\jones\src;c:\home\jones\public_html\classes\compute.jar
        client.ComputePi 45

Solaris OS or Linux :

java -cp /home/jones/src:/home/jones/public_html/classes/compute.jar
        client.ComputePi 45

Note that the class path is set on the command line so that the interpreter can find the client classes and the JAR file containing the interfaces. Also note that the value of the java.rmi.server.codebase property, which specifies a directory hierarchy, ends with a trailing slash.

After you start the client, the following output is displayed:

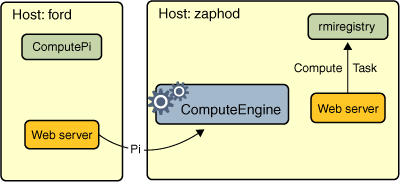

The following figure illustrates where the rmiregistry , the ComputeEngine server, and the ComputePi client obtain classes during program execution.

the registry, the compute engine, and the client obtaining classes during program execution

When the ComputeEngine server binds its remote object reference in the registry, the registry downloads the Compute and Task interfaces on which the stub class depends. These classes are downloaded from either the ComputeEngine server's web server or file system, depending on the type of codebase URL used when starting the server.

Because the ComputePi client has both the Compute and the Task interfaces available in its class path, it loads their definitions from its class path, not from the server's codebase.

Finally, the Pi class is loaded into the ComputeEngine server's Java virtual machine when the Pi object is passed in the executeTask remote call to the ComputeEngine object. The Pi class is loaded by the server from either the client's web server or file system, depending on the type of codebase URL used when starting the client.
