Using Log4j in Cloud Enabled Applications

The Twelve-Factor Application

The Logging Guidelines for The Twelve-Factor App state that all logs should be routed unbuffered to stdout. Since this is the least common denominator it is guaranteed to work for all applications. However, as with any set of general guidelines, choosing the least common denominator approach comes at a cost. Some of the costs in Java applications include:

  • Java stack traces are multi-line log messages. The standard docker log driver cannot handle these properly. See Docker Issue #22920 which was closed with the message “Don’t Care”. Solutions for this are to: a. Use a docker log driver that does support multi-line log message, b. Use a logging format that does not produce multi-line messages, c. Log from Log4j directly to a logging forwarder or aggregator and bypass the docker logging driver.

  • When logging to stdout in Docker, log events pass through Java’s standard output handling which is then directed to the operating system so that the output can be piped into a file. The overhead of all this is measurably slower than just writing directly to a file as can be seen in these benchmark results where logging to stdout is 16-20 times slower over repeated runs than logging directly to the file. The results below were obtained by running the Output Benchmark on a 2018 MacBook Pro with a 2.9GHz Intel Core i9 processor and a 1TB SSD. However, these results alone would not be enough to argue against writing to the standard output stream as they only amount to about 14-25 microseconds per logging call vs 1.5 microseconds when writing to the file.

Benchmark                  Mode  Cnt       Score       Error  Units
    OutputBenchmark.console   thrpt   20   39291.885 ±  3370.066  ops/s
    OutputBenchmark.file      thrpt   20  654584.309 ± 59399.092  ops/s
    OutputBenchmark.redirect  thrpt   20   70284.576 ±  7452.167  ops/s
  • When performing audit logging using a framework such as log4j-audit guaranteed delivery of the audit events is required. Many of the options for writing the output, including writing to the standard output stream, do not guarantee delivery. In these cases the event must be delivered to a “forwarder” that acknowledges receipt only when it has placed the event in durable storage, such as what Apache Flume or Apache Kafka will do.

Logging Approaches

All the solutions discussed on this page are predicated with the idea that log files cannot permanently reside on the file system and that all log events should be routed to one or more log analysis tools that will be used for reporting and alerting. There are many ways to forward and collect events to be sent to the log analysis tools.

Note that any approach that bypasses Docker’s logging drivers requires Log4j’s Docker Loookup to allow Docker attributes to be injected into the log events.

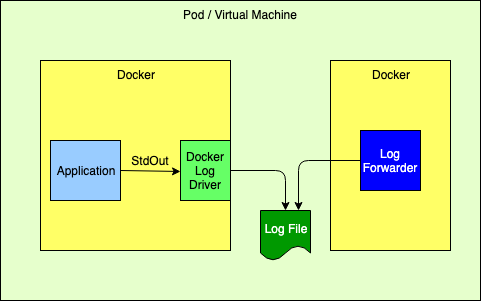

Logging to the Standard Output Stream

As discussed above, this is the recommended 12-Factor approach for applications running in a docker container. The Log4j team does not recommend this approach if exceptions will be logged by the Java application.

Stdout

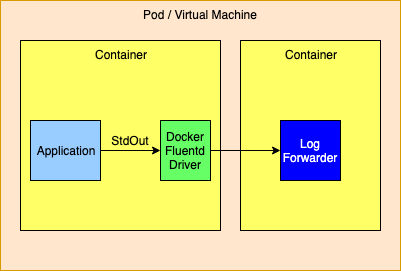

Logging to the Standard Output Stream with the Docker Fluentd Logging Driver

Docker provides alternate logging drivers, such as gelf or fluentd, that can be used to redirect the standard output stream to a log forwarder or log aggregator.

When routing to a log forwarder it is expected that the forwarder will have the same lifetime as the application. If the forwarder should fail the management tools would be expected to also terminate other containers dependent on the forwarder.

Docker Fluentbit

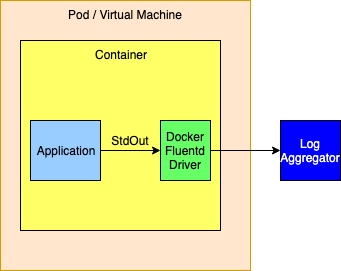

As an alternative the logging drivers could be configured to route events directly to a logging aggregator. This is generally not a good idea as the logging drivers only allow a single host and port to be configured. The docker documentation isn’t clear but infers that log events will be dropped when log events cannot be delivered so this method should not be used if a highly available solution is required.

Docker Fluentd

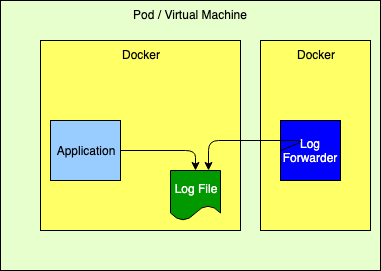

Logging to a File

While this is not the recommended 12-Factor approach, it performs very well. However, it requires that the application declare a volume where the log files will reside and then configure the log forwarder to tail those files. Care must also be taken to automatically manage the disk space used for the logs, which Log4j can perform via the Delete action on the RollingFileAppender.

File

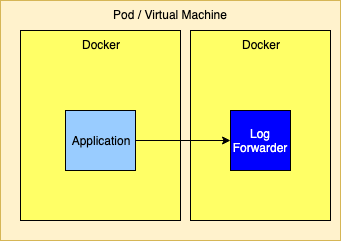

Sending Directly to a Log Forwarder via TCP

Sending logs directly to a Log Forwarder is simple as it generally just requires that the forwarder’s host and port be configured on a SocketAppender with an appropriate layout.

TCP

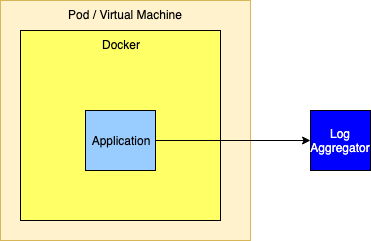

Sending Directly to a Log Aggregator via TCP

Similar to sending logs to a forwarder, logs can also be sent to a cluster of aggregators. However, setting this up is not as simple since, to be highly available, a cluster of aggregators must be used. However, the SocketAppender currently can only be configured with a single host and port. To allow for failover if the primary aggregator fails the SocketAppender must be enclosed in a FailoverAppender, which would also have the secondary aggregator configured. Another option is to have the SocketAppender point to a highly available proxy that can forward to the Log Aggregator.

If the log aggregator used is Apache Flume or Apache Kafka (or similar) the Appenders for these support being configured with a list of hosts and ports so high availability is not an issue.

Aggregator

Logging using ElasticSearch, Logstash, and Kibana

The following configurations have been tested with an ELK stack and are known to work.

Log4j Configuration

Use a socket appender with the GELF layout. Note that if the host name used by the socket appender has more than one ip address associated with its DNS entry the socket appender will fail through them all if needed.

<Socket name="Elastic" host="${sys:elastic.search.host}" port="12222" protocol="tcp" bufferedIo="true">
  <GelfLayout includeStackTrace="true" host="${hostName}" includeThreadContext="true" includeNullDelimiter="true"
              compressionType="OFF">
    <ThreadContextIncludes>requestId,sessionId,loginId,userId,ipAddress,callingHost</ThreadContextIncludes>
    <MessagePattern>%d [%t] %-5p %X{requestId, sessionId, loginId, userId, ipAddress} %C{1.}.%M:%L - %m%n</MessagePattern>
    <KeyValuePair key="containerId" value="${docker:containerId:-}"/>
    <KeyValuePair key="application" value="$${lower:${spring:spring.application.name:-spring}}"/>
    <KeyValuePair key="kubernetes.serviceAccountName" value="${k8s:accountName:-}"/>
    <KeyValuePair key="kubernetes.containerId" value="${k8s:containerId:-}"/>
    <KeyValuePair key="kubernetes.containerName" value="${k8s:containerName:-}"/>
    <KeyValuePair key="kubernetes.host" value="${k8s:host:-}"/>
    <KeyValuePair key="kubernetes.labels.app" value="${k8s:labels.app:-}"/>
    <KeyValuePair key="kubernetes.labels.pod-template-hash" value="${k8s:labels.podTemplateHash:-}"/>
    <KeyValuePair key="kubernetes.master_url" value="${k8s:masterUrl:-}"/>
    <KeyValuePair key="kubernetes.namespaceId" value="${k8s:namespaceId:-}"/>
    <KeyValuePair key="kubernetes.namespaceName" value="${k8s:namespaceName:-}"/>
    <KeyValuePair key="kubernetes.podID" value="${k8s:podId:-}"/>
    <KeyValuePair key="kubernetes.podIP" value="${k8s:podIp:-}"/>
    <KeyValuePair key="kubernetes.podName" value="${k8s:podName:-}"/>
    <KeyValuePair key="kubernetes.imageId" value="${k8s:imageId:-}"/>
    <KeyValuePair key="kubernetes.imageName" value="${k8s:imageName:-}"/>
  </GelfLayout>
</Socket>

Logstash Configuration

input {
  gelf {
    host => "localhost"
    use_tcp => true
    use_udp => false
    port => 12222
    type => "gelf"
  }
}

filter {
  # These are GELF/Syslog logging levels as defined in RFC 3164. Map the integer level to its human readable format.
  translate {
    field => "[level]"
    destination => "[levelName]"
    dictionary => {
      "0" => "EMERG"
      "1" => "ALERT"
      "2" => "CRITICAL"
      "3" => "ERROR"
      "4" => "WARN"
      "5" => "NOTICE"
      "6" => "INFO"
      "7" => "DEBUG"
    }
  }
}

output {
  # (Un)comment for debugging purposes
  # stdout { codec => rubydebug }
  # Modify the hosts value to reflect where elasticsearch is installed.
  elasticsearch {
    hosts => ["http://localhost:9200/"]
    index => "app-%{application}-%{+YYYY.MM.dd}"
  }
}

Kibana

With the above configurations the message field will contain a fully formatted log event just as it would appear in a file Appender. The ThreadContext attributes, custome fields, thread name, etc. will all be available as attributes on each log event that can be used for filtering.

Managing Logging Configuration

Spring Boot provides another least common denominator approach to logging configuration. It will let you set the log level for various Loggers within an application which can be dynamically updated via REST endpoints provided by Spring. While this works in a lot of cases it does not support any of the more advanced filtering features of Log4j. For example, since it cannot add or modify any Filters other than the log level of a logger, changes cannot be made to allow all log events for a specific user or customer to temporarily be logged (see DynamicThresholdFilter or ThreadContextMapFilter) or any other kinds of changes to filters. Also, in a micro-services, clustered environment it is quite likely that these changes will need to be propagated to multiple servers at the same time. Trying to achieve this via REST calls could be difficult.

Since its first release Log4j has supported reconfiguration through a file. Beginning with Log4j 2.12.0 Log4j also supports accessing the configuration via HTTP(S) and monitoring the file for changes by using the HTTP “If-Modified-Since” header. A patch has also been integrated into Spring Cloud Config starting with versions 2.0.3 and 2.1.1 for it to honor the If-Modified-Since header. In addition, the log4j-spring-cloud-config project will listen for update events published by Spring Cloud Bus and then verify that the configuration file has been modified, so polling via HTTP is not required.

Log4j also supports composite configurations. A distributed application spread across microservices could share a common configuration file that could be used to control things like enabling debug logging for a specific user.

While the standard Spring Boot REST endpoints to update logging will still work any changes made by those REST endpoints will be lost if Log4j reconfigures itself do to changes in the logging configuration file.

Further information regarding integration of the log4j-spring-cloud-config-client can be found at Log4j Spring Cloud Config Client.

Integration with Spring Boot

Log4j integrates with Spring Boot in 2 ways:

  • A Spring Lookup can be used to access the Spring application configuration from Log4j configuration files.

  • Log4j will access the Spring configuration when it is trying to resolve log4j system properties.

Both of these require that the log4j-spring-cloud-client jar is included in the application.

Integration with Docker

Applications within a Docker container that log using a Docker logging driver can include special attributes in the formatted log event as described at Customize Log Driver Output. Log4j provides similar functionality via the Docker Lookup. More information on Log4j’s Docker support may also be found at Log4j-Docker.

Integration with Kubernetes

Applications managed by Kubernetes can bypass the Docker/Kubernetes logging infrastructure and log directly to either a sidecar forwarder or a logging aggragator cluster while still including all the kubernetes attributes by using the Log4j 2 Kubernetes Lookup. More information on Log4j’s Kubernetes support may also be found at Log4j-Kubernetes.

Appender Performance

The numbers in the table below represent how much time in seconds was required for the application to call logger.debug 100,000 times. These numbers only include the time taken to deliver to the specifically noted endpoint and many not include the actual time required before they are available for viewing. All measurements were performed on a MacBook Pro with a 2.9GHz Intel Core I9 processor with 6 physical and 12 logical cores, 32GB of 2400 MHz DDR4 RAM, and 1TB of Apple SSD storage. The VM used by Docker was managed by VMWare Fusion and had 4 CPUs and 2 GB of RAM. These number should be used for relative performance comparisons as the results on another system may vary considerably.

The sample application used can be found under the log4j-spring-cloud-config/log4j-spring-cloud-config-samples directory in the Log4j source repository.

Test1 Thread2 Threads4 Threads8 Threads
Flume Avro
- Batch Size 1 - JSON49.1146.5446.7044.92
- Batch Size 1 - RFC542448.3045.7946.3145.50
- Batch Size 100 - JSON6.333.873.573.84
- Batch Size 100 - RFC54246.083.693.223.11
- Batch Size 1000 - JSON4.833.203.022.11
- Batch Size 1000 - RFC54244.702.402.372.37
Flume Embedded
- RFC54243.582.102.102.70
- JSON4.202.493.532.90
Kafka Local JSON
- sendSync true58.4638.5519.5919.01
- sendSync false9.810.812.2311.36
Console
- JSON / Kubernetes3.033.113.042.51
- JSON2.802.742.542.35
- Docker fluentd driver10.659.9210.4210.27
Rolling File
- RFC54241.650.941.221.55
- JSON1.900.951.571.94
TCP - Fluent Bit - JSON2.342.1671.672.50
Async Logger
- TCP - Fluent Bit - JSON0.900.580.360.48
- Console - JSON0.830.570.550.61
- Flume Avro - 1000 - JSON0.760.370.450.68

Notes:

  • Flume Avro - Buffering is controlled by the batch size. Each send is complete when the remote acknowledges the batch was written to its channel. These number seem to indicate Flume Avro could benefit from using a pool of RPCClients, at least for a batchSize of 1.

  • Flume Embedded - This is essentially asynchronous as it writes to an in-memory buffer. It is unclear why the performance isn’t closer to the AsyncLogger results.

  • Kafka was run in standalone mode on the same laptop as the application. See sendSync set to true requires waiting for an ack from Kafka for each log event.

  • Console - System.out is redirected to a file by Docker. Testing shows that it would be much slower if it was writing to the terminal screen.

  • Rolling File - Test uses the default buffer size of 8K.

  • TCP to Fluent Bit - The Socket Appender uses a default buffer size of 8K.

  • Async Loggers - These all write to a circular buffer and return to the application. The actual I/O will take place on a separate thread. If writing the events is performed more slowly than events are being created eventually the buffer will fill up and logging will be performed at the same pace that log events are written.

Logging Recommendations

  • Use asynchronous logging unless guaranteed delivery is absolutely required. As the performance numbers show, so long as the volume of logging is not high enough to fill up the circular buffer the overhead of logging will almost be unnoticeable to the application.

  • If overall performance is a consideration or you require multiline events such as stack traces be processed properly then log via TCP to a companion container that acts as a log forwarder or directly to a log aggregator as shown above in Logging with ELK. Use the
    Log4j Docker Lookup to add the container information to each log event.

  • Whenever guaranteed delivery is required use Flume Avro with a batch size of 1 or another Appender such as the Kafka Appender with syncSend set to true that only return control after the downstream agent acknowledges receipt of the event. Beware that using an Appender that writes each event individually should be kept to a minimum since it is much slower than sending buffered events.

  • Logging to files within the container is discouraged. Doing so requires that a volume be declared in the Docker configuration and that the file be tailed by a log forwarder. However, it performs better than logging to the standard output stream. If logging via TCP is not an option and proper multiline handling is required then consider this option.
