3. The Domain Language of Batch

To any experienced batch architect, the overall concepts of batch processing used in Spring Batch should be familiar and comfortable. There are "Jobs" and "Steps" and developer supplied processing units called ItemReaders and ItemWriters. However, because of the Spring patterns, operations, templates, callbacks, and idioms, there are opportunities for the following:

  • significant improvement in adherence to a clear separation of concerns

  • clearly delineated architectural layers and services provided as interfaces

  • simple and default implementations that allow for quick adoption and ease of use out-of-the-box

  • significantly enhanced extensibility

The diagram below is simplified version of the batch reference architecture that has been used for decades. It provides an overview of the components that make up the domain language of batch processing. This architecture framework is a blueprint that has been proven through decades of implementations on the last several generations of platforms (COBOL/Mainframe, C++/Unix, and now Java/anywhere). JCL and COBOL developers are likely to be as comfortable with the concepts as C++, C# and Java developers. Spring Batch provides a physical implementation of the layers, components and technical services commonly found in robust, maintainable systems used to address the creation of simple to complex batch applications, with the infrastructure and extensions to address very complex processing needs.

Figure 2.1: Batch Stereotypes

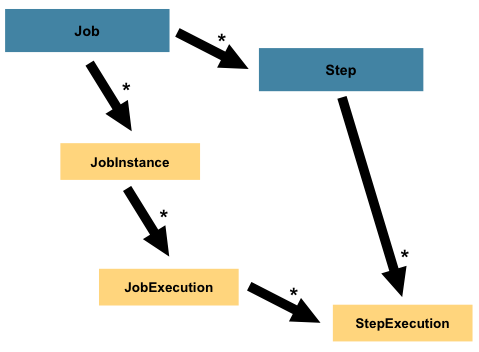

The diagram above highlights the key concepts that make up the domain language of batch. A Job has one to many steps, which has exactly one ItemReader, ItemProcessor, and ItemWriter. A job needs to be launched (JobLauncher), and meta data about the currently running process needs to be stored (JobRepository).

3.1 Job

This section describes stereotypes relating to the concept of a batch job. A Job is an entity that encapsulates an entire batch process. As is common with other Spring projects, a Job will be wired together via an XML configuration file or Java based configuration. This configuration may be referred to as the "job configuration". However, Job is just the top of an overall hierarchy:

In Spring Batch, a Job is simply a container for Steps. It combines multiple steps that belong logically together in a flow and allows for configuration of properties global to all steps, such as restartability. The job configuration contains:

  • The simple name of the job

  • Definition and ordering of Steps

  • Whether or not the job is restartable

A default simple implementation of the Job interface is provided by Spring Batch in the form of the SimpleJob class which creates some standard functionality on top of Job, however the batch namespace abstracts away the need to instantiate it directly. Instead, the <job> tag can be used:

<job id="footballJob">
    <step id="playerload" next="gameLoad"/>
    <step id="gameLoad" next="playerSummarization"/>
    <step id="playerSummarization"/>
</job>

3.1.1 JobInstance

A JobInstance refers to the concept of a logical job run. Let's consider a batch job that should be run once at the end of the day, such as the 'EndOfDay' job from the diagram above. There is one 'EndOfDay' Job, but each individual run of the Job must be tracked separately. In the case of this job, there will be one logical JobInstance per day. For example, there will be a January 1st run, and a January 2nd run. If the January 1st run fails the first time and is run again the next day, it is still the January 1st run. (Usually this corresponds with the data it is processing as well, meaning the January 1st run processes data for January 1st, etc). Therefore, each JobInstance can have multiple executions (JobExecution is discussed in more detail below) and only one JobInstance corresponding to a particular Job and identifying JobParameters can be running at a given time.

The definition of a JobInstance has absolutely no bearing on the data the will be loaded. It is entirely up to the ItemReader implementation used to determine how data will be loaded. For example, in the EndOfDay scenario, there may be a column on the data that indicates the 'effective date' or 'schedule date' to which the data belongs. So, the January 1st run would only load data from the 1st, and the January 2nd run would only use data from the 2nd. Because this determination will likely be a business decision, it is left up to the ItemReader to decide. What using the same JobInstance will determine, however, is whether or not the 'state' (i.e. the ExecutionContext, which is discussed below) from previous executions will be used. Using a new JobInstance will mean 'start from the beginning' and using an existing instance will generally mean 'start from where you left off'.

3.1.2 JobParameters

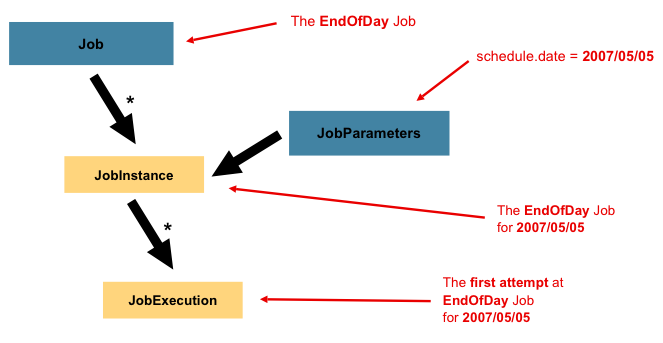

Having discussed JobInstance and how it differs from Job, the natural question to ask is: "how is one JobInstance distinguished from another?" The answer is: JobParameters. JobParameters is a set of parameters used to start a batch job. They can be used for identification or even as reference data during the run:

In the example above, where there are two instances, one for January 1st, and another for January 2nd, there is really only one Job, one that was started with a job parameter of 01-01-2008 and another that was started with a parameter of 01-02-2008. Thus, the contract can be defined as: JobInstance = Job + identifying JobParameters. This allows a developer to effectively control how a JobInstance is defined, since they control what parameters are passed in.

[Note] Note

Not all job parameters are required to contribute to the identification of a JobInstance. By default they do, however the framework allows the submission of a Job with parameters that do not contribute to the identity of a JobInstance as well.

3.1.3 JobExecution

A JobExecution refers to the technical concept of a single attempt to run a Job. An execution may end in failure or success, but the JobInstance corresponding to a given execution will not be considered complete unless the execution completes successfully. Using the EndOfDay Job described above as an example, consider a JobInstance for 01-01-2008 that failed the first time it was run. If it is run again with the same identifying job parameters as the first run (01-01-2008), a new JobExecution will be created. However, there will still be only one JobInstance.

A Job defines what a job is and how it is to be executed, and JobInstance is a purely organizational object to group executions together, primarily to enable correct restart semantics. A JobExecution, however, is the primary storage mechanism for what actually happened during a run, and as such contains many more properties that must be controlled and persisted:

Table 3.1. JobExecution Properties

status A BatchStatus object that indicates the status of the execution. While running, it's BatchStatus.STARTED, if it fails, it's BatchStatus.FAILED, and if it finishes successfully, it's BatchStatus.COMPLETED
startTime A java.util.Date representing the current system time when the execution was started.
endTime A java.util.Date representing the current system time when the execution finished, regardless of whether or not it was successful.
exitStatus The ExitStatus indicating the result of the run. It is most important because it contains an exit code that will be returned to the caller. See chapter 5 for more details.
createTime A java.util.Date representing the current system time when the JobExecution was first persisted. The job may not have been started yet (and thus has no start time), but it will always have a createTime, which is required by the framework for managing job level ExecutionContexts.
lastUpdated A java.util.Date representing the last time a JobExecution was persisted.
executionContext The 'property bag' containing any user data that needs to be persisted between executions.
failureExceptions The list of exceptions encountered during the execution of a Job. These can be useful if more than one exception is encountered during the failure of a Job.

These properties are important because they will be persisted and can be used to completely determine the status of an execution. For example, if the EndOfDay job for 01-01 is executed at 9:00 PM, and fails at 9:30, the following entries will be made in the batch meta data tables:

Table 3.2. BATCH_JOB_INSTANCE

JOB_INST_ID JOB_NAME
1 EndOfDayJob

Table 3.3. BATCH_JOB_EXECUTION_PARAMS

JOB_EXECUTION_ID TYPE_CD KEY_NAME DATE_VAL IDENTIFYING
1 DATE schedule.Date 2008-01-01 TRUE

Table 3.4. BATCH_JOB_EXECUTION

JOB_EXEC_ID JOB_INST_ID START_TIME END_TIME STATUS
1 1 2008-01-01 21:00 2008-01-01 21:30 FAILED

[Note] Note

column names may have been abbreviated or removed for clarity and formatting

Now that the job has failed, let's assume that it took the entire course of the night for the problem to be determined, so that the 'batch window' is now closed. Assuming the window starts at 9:00 PM, the job will be kicked off again for 01-01, starting where it left off and completing successfully at 9:30. Because it's now the next day, the 01-02 job must be run as well, which is kicked off just afterwards at 9:31, and completes in its normal one hour time at 10:30. There is no requirement that one JobInstance be kicked off after another, unless there is potential for the two jobs to attempt to access the same data, causing issues with locking at the database level. It is entirely up to the scheduler to determine when a Job should be run. Since they're separate JobInstances, Spring Batch will make no attempt to stop them from being run concurrently. (Attempting to run the same JobInstance while another is already running will result in a JobExecutionAlreadyRunningException being thrown). There should now be an extra entry in both the JobInstance and JobParameters tables, and two extra entries in the JobExecution table:

Table 3.5. BATCH_JOB_INSTANCE

JOB_INST_ID JOB_NAME
1 EndOfDayJob
2 EndOfDayJob

Table 3.6. BATCH_JOB_EXECUTION_PARAMS

JOB_EXECUTION_ID TYPE_CD KEY_NAME DATE_VAL IDENTIFYING
1 DATE schedule.Date 2008-01-01 00:00:00 TRUE
2 DATE schedule.Date 2008-01-01 00:00:00 TRUE
3 DATE schedule.Date 2008-01-02 00:00:00 TRUE

Table 3.7. BATCH_JOB_EXECUTION

JOB_EXEC_ID JOB_INST_ID START_TIME END_TIME STATUS
1 1 2008-01-01 21:00 2008-01-01 21:30 FAILED
2 1 2008-01-02 21:00 2008-01-02 21:30 COMPLETED
3 2 2008-01-02 21:31 2008-01-02 22:29 COMPLETED

[Note] Note

column names may have been abbreviated or removed for clarity and formatting

3.2 Step

A Step is a domain object that encapsulates an independent, sequential phase of a batch job. Therefore, every Job is composed entirely of one or more steps. A Step contains all of the information necessary to define and control the actual batch processing. This is a necessarily vague description because the contents of any given Step are at the discretion of the developer writing a Job. A Step can be as simple or complex as the developer desires. A simple Step might load data from a file into the database, requiring little or no code. (depending upon the implementations used) A more complex Step may have complicated business rules that are applied as part of the processing. As with Job, a Step has an individual StepExecution that corresponds with a unique JobExecution:

3.2.1 StepExecution

A StepExecution represents a single attempt to execute a Step. A new StepExecution will be created each time a Step is run, similar to JobExecution. However, if a step fails to execute because the step before it fails, there will be no execution persisted for it. A StepExecution will only be created when its Step is actually started.

Step executions are represented by objects of the StepExecution class. Each execution contains a reference to its corresponding step and JobExecution, and transaction related data such as commit and rollback count and start and end times. Additionally, each step execution will contain an ExecutionContext, which contains any data a developer needs persisted across batch runs, such as statistics or state information needed to restart. The following is a listing of the properties for StepExecution:

Table 3.8. StepExecution Properties

status A BatchStatus object that indicates the status of the execution. While it's running, the status is BatchStatus.STARTED, if it fails, the status is BatchStatus.FAILED, and if it finishes successfully, the status is BatchStatus.COMPLETED
startTime A java.util.Date representing the current system time when the execution was started.
endTime A java.util.Date representing the current system time when the execution finished, regardless of whether or not it was successful.
exitStatus The ExitStatus indicating the result of the execution. It is most important because it contains an exit code that will be returned to the caller. See chapter 5 for more details.
executionContext The 'property bag' containing any user data that needs to be persisted between executions.
readCount The number of items that have been successfully read
writeCount The number of items that have been successfully written
commitCount The number transactions that have been committed for this execution
rollbackCount The number of times the business transaction controlled by the Step has been rolled back.
readSkipCount The number of times read has failed, resulting in a skipped item.
processSkipCount The number of times process has failed, resulting in a skipped item.
filterCount The number of items that have been 'filtered' by the ItemProcessor.
writeSkipCount The number of times write has failed, resulting in a skipped item.

3.3 ExecutionContext

An ExecutionContext represents a collection of key/value pairs that are persisted and controlled by the framework in order to allow developers a place to store persistent state that is scoped to a StepExecution or JobExecution. For those familiar with Quartz, it is very similar to JobDataMap. The best usage example is to facilitate restart. Using flat file input as an example, while processing individual lines, the framework periodically persists the ExecutionContext at commit points. This allows the ItemReader to store its state in case a fatal error occurs during the run, or even if the power goes out. All that is needed is to put the current number of lines read into the context, and the framework will do the rest:

executionContext.putLong(getKey(LINES_READ_COUNT), reader.getPosition());

Using the EndOfDay example from the Job Stereotypes section as an example, assume there's one step: 'loadData', that loads a file into the database. After the first failed run, the meta data tables would look like the following:

Table 3.9. BATCH_JOB_INSTANCE

JOB_INST_ID JOB_NAME
1 EndOfDayJob


Table 3.10. BATCH_JOB_PARAMS

JOB_INST_ID TYPE_CD KEY_NAME DATE_VAL
1 DATE schedule.Date 2008-01-01


Table 3.11. BATCH_JOB_EXECUTION

JOB_EXEC_ID JOB_INST_ID START_TIME END_TIME STATUS
1 1 2008-01-01 21:00 2008-01-01 21:30 FAILED


Table 3.12. BATCH_STEP_EXECUTION

STEP_EXEC_ID JOB_EXEC_ID STEP_NAME START_TIME END_TIME STATUS
1 1 loadDate 2008-01-01 21:00 2008-01-01 21:30 FAILED


Table 3.13. BATCH_STEP_EXECUTION_CONTEXT

STEP_EXEC_ID SHORT_CONTEXT
1 {piece.count=40321}


In this case, the Step ran for 30 minutes and processed 40,321 'pieces', which would represent lines in a file in this scenario. This value will be updated just before each commit by the framework, and can contain multiple rows corresponding to entries within the ExecutionContext. Being notified before a commit requires one of the various StepListeners, or an ItemStream, which are discussed in more detail later in this guide. As with the previous example, it is assumed that the Job is restarted the next day. When it is restarted, the values from the ExecutionContext of the last run are reconstituted from the database, and when the ItemReader is opened, it can check to see if it has any stored state in the context, and initialize itself from there:

if (executionContext.containsKey(getKey(LINES_READ_COUNT))) {
    log.debug("Initializing for restart. Restart data is: " + executionContext);

    long lineCount = executionContext.getLong(getKey(LINES_READ_COUNT));

    LineReader reader = getReader();

    Object record = "";
    while (reader.getPosition() < lineCount && record != null) {
        record = readLine();
    }
}

In this case, after the above code is executed, the current line will be 40,322, allowing the Step to start again from where it left off. The ExecutionContext can also be used for statistics that need to be persisted about the run itself. For example, if a flat file contains orders for processing that exist across multiple lines, it may be necessary to store how many orders have been processed (which is much different from than the number of lines read) so that an email can be sent at the end of the Step with the total orders processed in the body. The framework handles storing this for the developer, in order to correctly scope it with an individual JobInstance. It can be very difficult to know whether an existing ExecutionContext should be used or not. For example, using the 'EndOfDay' example from above, when the 01-01 run starts again for the second time, the framework recognizes that it is the same JobInstance and on an individual Step basis, pulls the ExecutionContext out of the database and hands it as part of the StepExecution to the Step itself. Conversely, for the 01-02 run the framework recognizes that it is a different instance, so an empty context must be handed to the Step. There are many of these types of determinations that the framework makes for the developer to ensure the state is given to them at the correct time. It is also important to note that exactly one ExecutionContext exists per StepExecution at any given time. Clients of the ExecutionContext should be careful because this creates a shared keyspace, so care should be taken when putting values in to ensure no data is overwritten. However, the Step stores absolutely no data in the context, so there is no way to adversely affect the framework.

It is also important to note that there is at least one ExecutionContext per JobExecution, and one for every StepExecution. For example, consider the following code snippet:

ExecutionContext ecStep = stepExecution.getExecutionContext();
ExecutionContext ecJob = jobExecution.getExecutionContext();
//ecStep does not equal ecJob

As noted in the comment, ecStep will not equal ecJob; they are two different ExecutionContexts. The one scoped to the Step will be saved at every commit point in the Step, whereas the one scoped to the Job will be saved in between every Step execution.

3.4 JobRepository

JobRepository is the persistence mechanism for all of the Stereotypes mentioned above. It provides CRUD operations for JobLauncher, Job, and Step implementations. When a Job is first launched, a JobExecution is obtained from the repository, and during the course of execution StepExecution and JobExecution implementations are persisted by passing them to the repository:

<job-repository id="jobRepository"/>

3.5 JobLauncher

JobLauncher represents a simple interface for launching a Job with a given set of JobParameters:

public interface JobLauncher {

    public JobExecution run(Job job, JobParameters jobParameters)
                throws JobExecutionAlreadyRunningException, JobRestartException;
}

It is expected that implementations will obtain a valid JobExecution from the JobRepository and execute the Job.

3.6 Item Reader

ItemReader is an abstraction that represents the retrieval of input for a Step, one item at a time. When the ItemReader has exhausted the items it can provide, it will indicate this by returning null. More details about the ItemReader interface and its various implementations can be found in Chapter 6, ItemReaders and ItemWriters.

3.7 Item Writer

ItemWriter is an abstraction that represents the output of a Step, one batch or chunk of items at a time. Generally, an item writer has no knowledge of the input it will receive next, only the item that was passed in its current invocation. More details about the ItemWriter interface and its various implementations can be found in Chapter 6, ItemReaders and ItemWriters.

3.8 Item Processor

ItemProcessor is an abstraction that represents the business processing of an item. While the ItemReader reads one item, and the ItemWriter writes them, the ItemProcessor provides access to transform or apply other business processing. If, while processing the item, it is determined that the item is not valid, returning null indicates that the item should not be written out. More details about the ItemProcessor interface can be found in Chapter 6, ItemReaders and ItemWriters.

3.9 Batch Namespace

Many of the domain concepts listed above need to be configured in a Spring ApplicationContext. While there are implementations of the interfaces above that can be used in a standard bean definition, a namespace has been provided for ease of configuration:

<beans:beans xmlns="http://www.springframework.org/schema/batch"
     xmlns:beans="http://www.springframework.org/schema/beans"
     xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
     xsi:schemaLocation="
           http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd
           http://www.springframework.org/schema/batch
           http://www.springframework.org/schema/batch/spring-batch-2.2.xsd">

    <job id="ioSampleJob">
        <step id="step1">
            <tasklet>
                <chunk reader="itemReader" writer="itemWriter" commit-interval="2"/>
            </tasklet>
        </step>
    </job>

</beans:beans>

As long as the batch namespace has been declared, any of its elements can be used. More information on configuring a Job can be found in Chapter 4, Configuring and Running a Job. More information on configuring a Step can be found in Chapter 5, Configuring a Step.
